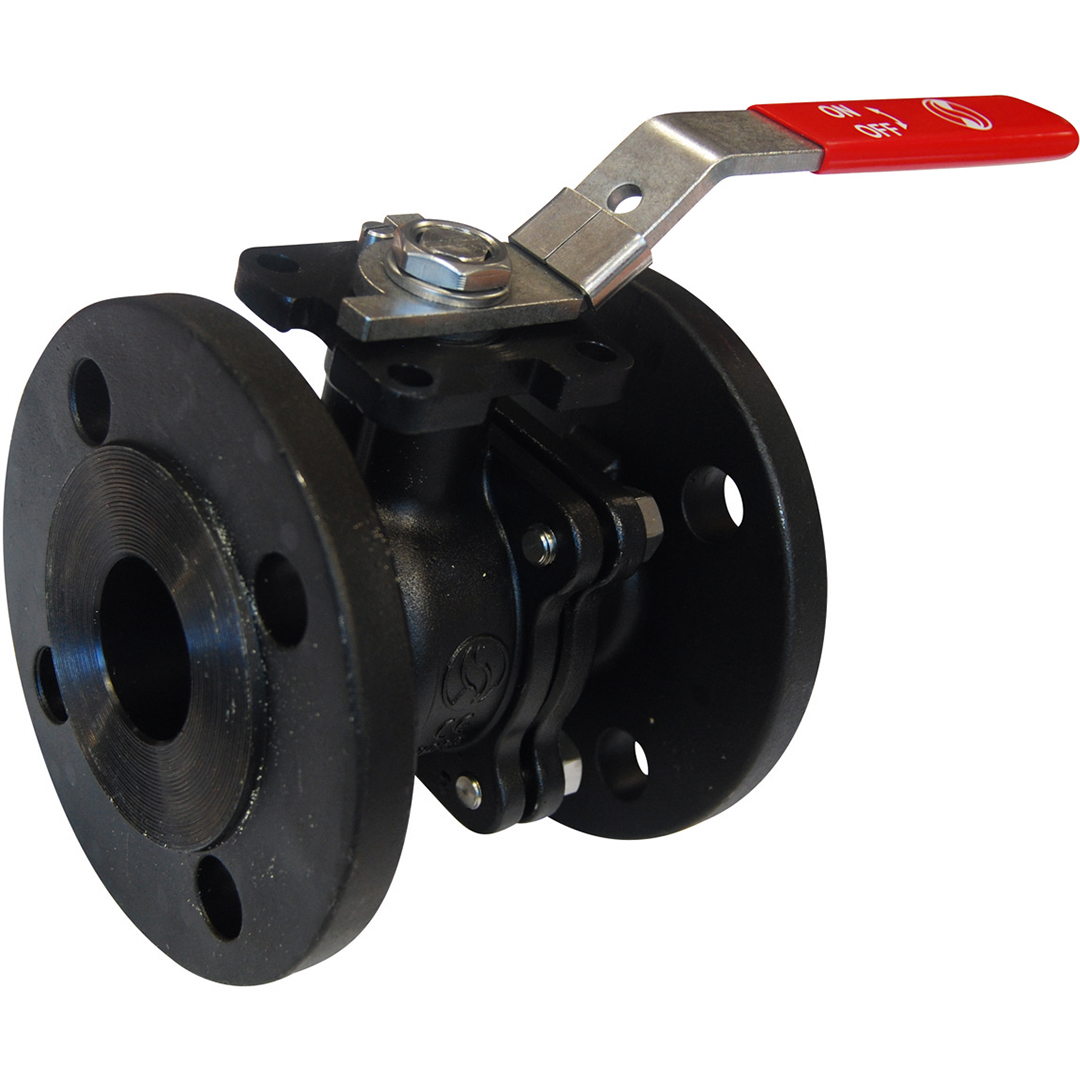

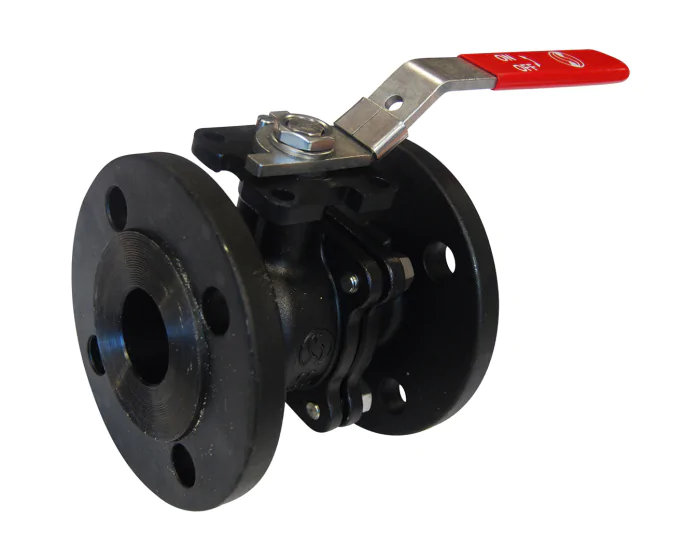

Carbon steel ball valve 793 2 piece body RF ANSI150 1/2''
€40.04
(excl. btw)
Carbon steel ball valve 793 2 piece body RF ANSI150 2"
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 |
| CE risk category | II Module D1 |
| EN face-to-face standard | EN 558 Series 3 |
| ASME face-to-face standard | ASME B16.10 |
| Face to face standard | EN 558 Series 3. ASME B16.10 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 6 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 108.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | F04 |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 304 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | Split body |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2'' | 793015 | S1006689 |
€40.04
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4'' | 793020 | S1006690 |
€45.34
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1'' | 793025 | S1006691 |
€65.66
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN32 - 1''1/4 | 793032 | S1006692 |
€77.20
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2 | 793040 | S1006693 |
€129.27
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2'' | 793050 | S1006694 |
€170.23
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN65 - 2''1/2 | 793065 | S1006695 |
€264.47
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3'' | 793080 | S1006696 |
€353.13
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4'' | 793100 | S1006697 |
€598.14
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6'' | 793150 | S1006698 |
€1,245.71
(excl. btw)
|
add to cart |
